How to choose the right T-junction in a project?

In pipeline engineering, elbows are crucial pipe fittings that branch off from the main pipe to the branch pipe. Choosing the wrong one can directly affect the safety of the system.

When choosing an elbow, the first thing to consider is the type. Equal diameter elbows are used when the main pipe and the branch pipe have the same diameter and flow rate; while reducing elbows are used when the branch pipe has a smaller diameter and lower flow rate. If the medium being transported is viscous or for drainage systems, a 45-degree bevel elbow is recommended as it can effectively reduce flow resistance.

The material must be consistent with the pipe. Carbon steel elbows are suitable for high-temperature steam pipes, stainless steel elbows are used for corrosive media or in the food and pharmaceutical industries, and malleable cast iron elbows are commonly used in normal temperature water supply and fire protection systems. Mixing different materials can lead to electrochemical corrosion and must be avoided.

The connection method depends on the system requirements. High-pressure and high-temperature pipes should use butt welding connections, which are strong and have good sealing; small-diameter and low-pressure systems can use threaded connections, which are easy to install; grooved connections are commonly used in fire protection and air conditioning projects, as they are fast to install.

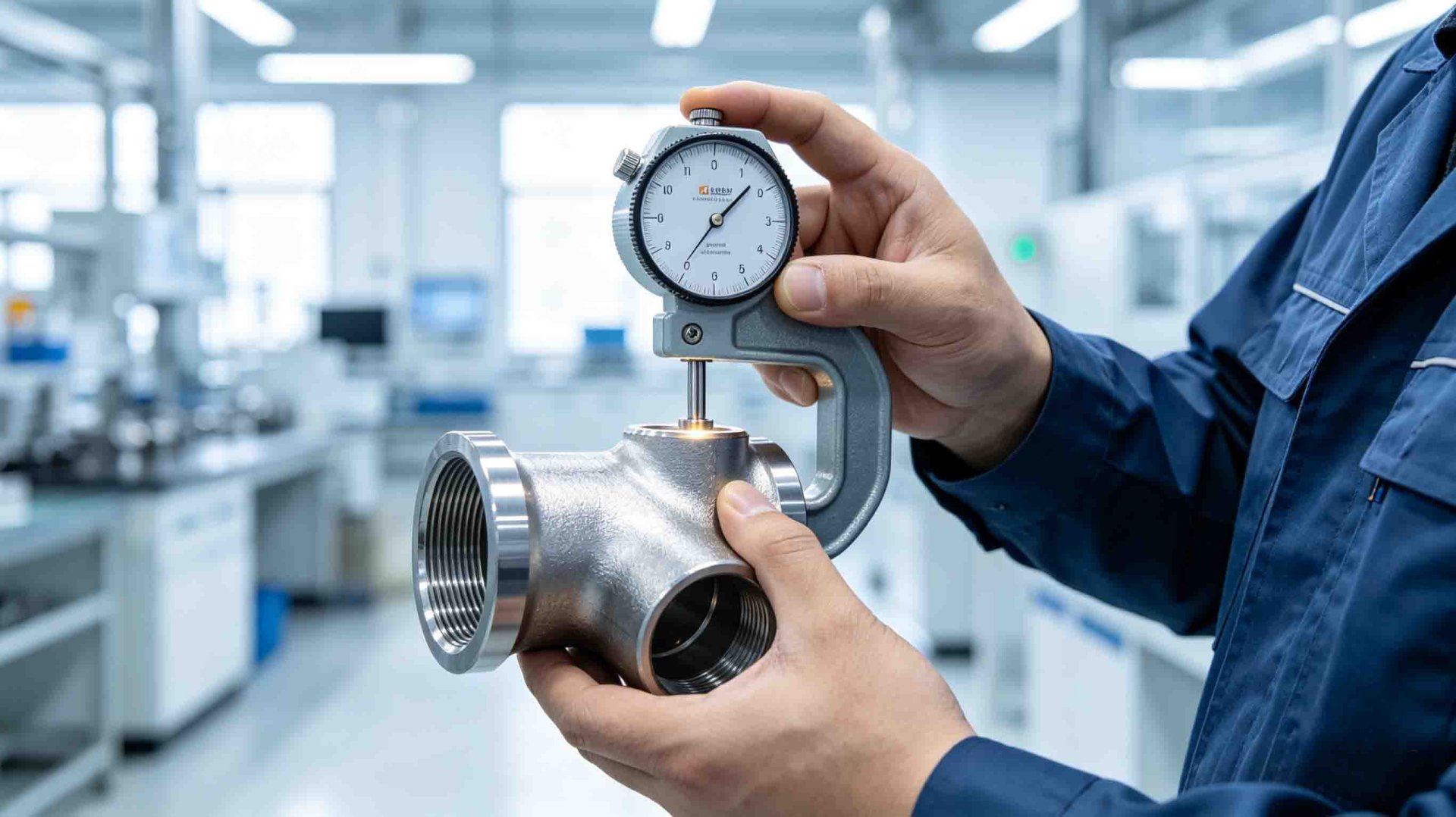

The pressure rating is the most common mistake. The PN value or Class rating marked on the elbow must be greater than or equal to the working pressure of the pipeline system. It is strictly forbidden to use low-pressure pipe fittings to replace high-pressure ones. In addition, when purchasing, check if the product surface has clear standard numbers and specification markings, and observe whether the wall thickness is uniform and the threads are complete.

In summary, choosing an elbow follows a six-step method: determine the type, match the material, select the connection, check the pressure, consider the fluid, and verify the quality. Although elbows are small, they are crucial to the safety of the entire pipeline system and should not be taken lightly.
