How to Choose Spiral Steel Pipe? Remember These Four Key Points

Spiral steel pipes are the "workhorses" of water conservancy, petroleum, and municipal engineering, widely used in water transmission, oil transportation, and structural support. With so many products on the market, how do you choose the right one? Remember these four key points:

1. Check the Standard, Determine the Grade
   The production standard of spiral steel pipe directly determines its quality. Choose the appropriate standard based on the project's application, and never "downgrade" the standard for cost reasons.

2. Check the Material, Match the Working Conditions
Common materials include Q235B, Q355B, L245, and others. For water transmission projects, Q235B is a common choice; for higher pressure requirements, Q355B is suitable. For oil and natural gas pipelines, L-series materials or higher should be selected according to the applicable standards. Also consider the corrosiveness of the medium and specify internal and external anti-corrosion coatings when necessary.

3. Check the Dimensions, Verify Accuracy

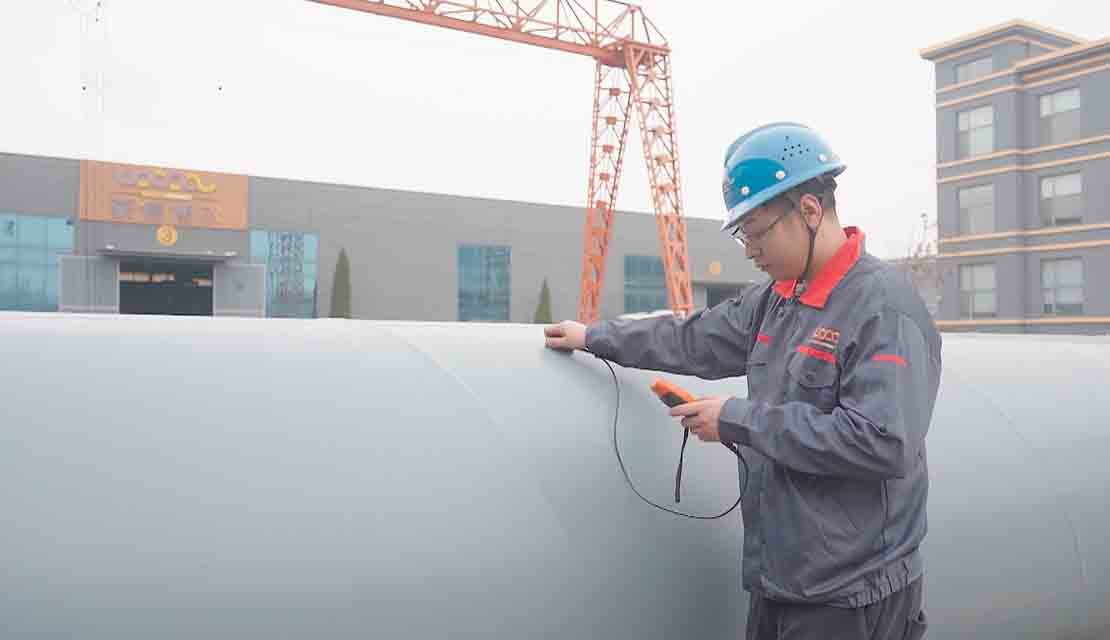

Pay close attention to whether the outer diameter, wall thickness, and length meet the design requirements. Negative deviations in the wall thickness of spiral welded steel pipes directly affect their pressure-bearing capacity; random sampling and actual measurement should be performed upon receipt. For large-diameter pipes (DN1000 and above), ovality should also be checked to avoid difficulties in on-site connection.

4. Check the Weld, Emphasize Inspection

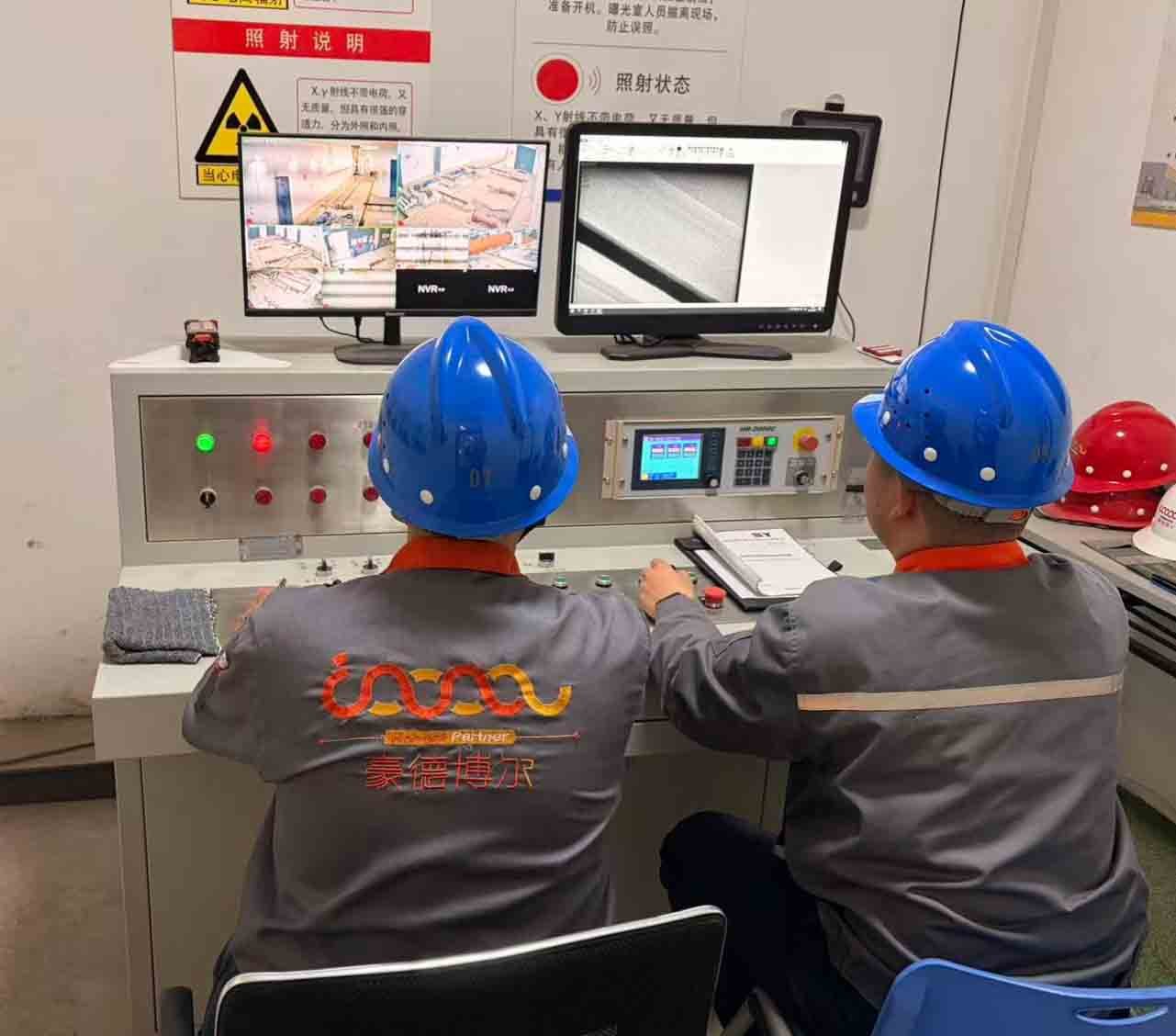

The weld is the critical part of a spiral steel pipe. Ensure that the manufacturer has non-destructive testing capabilities (ultrasonic or X-ray), and that the weld is free from cracks, porosity, slag inclusions, and other defects. For important projects, third-party supervision or hydrostatic testing is recommended.

Conclusion
When selecting spiral steel pipes, price should not be the only consideration. By carefully evaluating the standard, material, dimensions, and weld quality, you can ensure the pipeline project operates safely for decades to come.
