Steel Pipe End Socketing Equipment: Technology Evolution and Industrial Applications

1.Development History: From Hot Upsetting to CNC Spinning

Early socketing solutions relied on expansion forming and hot upsetting. Expansion forming applied radial hydraulic pressure to plastically deform the pipe end, but suffered from high forming forces, poor dimensional accuracy, and limited blank pipe compatibility. Hot upsetting required heating the pipe end before axial forging, with the bell and spigot welded separately—an approach plagued by weld distortion and high manufacturing costs. The introduction of CNC spinning marked a critical turning point. By coordinating inner and outer spinning rollers along the pipe end circumference with axial and radial digital cylinder control, spinning equipment forms the bell on one end and the spigot on the other as an integral structure—no welding required, with tolerances down to ±0.1mm and markedly improved consistency. Subsequent automation integrated weld seam grinding, expansion forming, grooving, and drilling into continuous lines, reducing per-pipe cycle times to minutes. Recent innovations include dedicated small-diameter belling devices and corrugated socket forming machines, completing the equipment spectrum.

2.Equipment Types and Working Principles

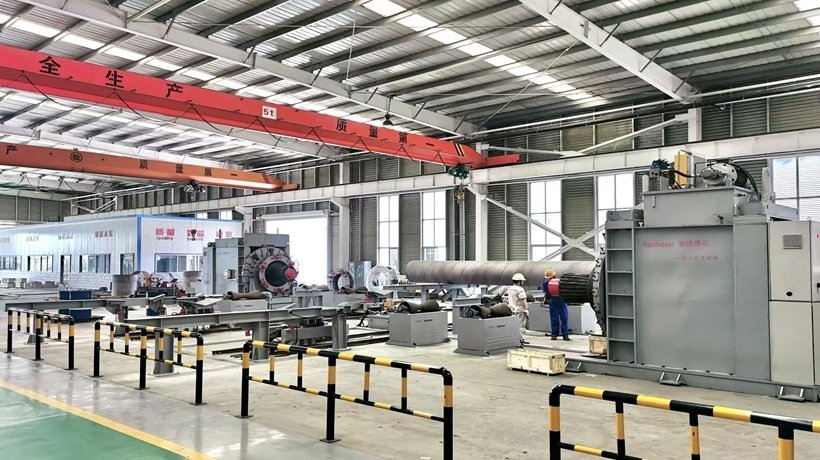

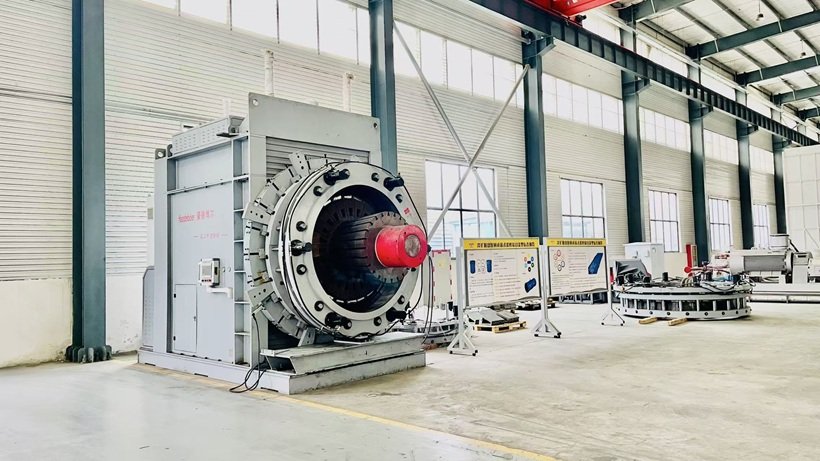

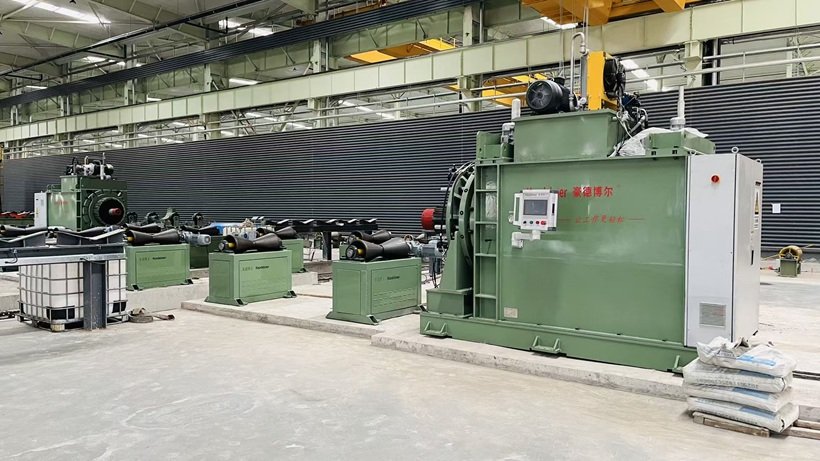

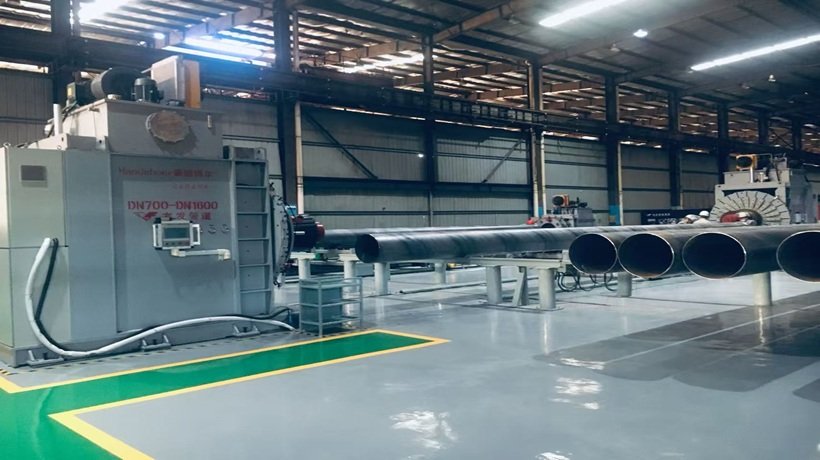

Current mainstream equipment falls into four categories. Hydraulic expanding machines use hydraulic cylinders to drive dies radially against the pipe end, with forming forces reaching 2,000 tons. They are the workhorse for large-diameter thick-walled pipes above DN800, widely used in municipal drainage and oil & gas pipelines. Mechanical spinning machines shape the pipe end progressively using rotating rollers, achieving ±0.1mm accuracy and excellent surface finish—ideal for thin-walled stainless steel water pipes. Haodeboer holds multiple patents in this domain. High-frequency induction heating machines soften the pipe end before forming, effectively reducing cold-working crack risk in high-strength steels such as X70/X80 and minimizing residual stress. Automated integrated lines combine cutting, beveling, expanding, and inspection under PLC/CNC control. Haodeboer's socketing production line handles diameters from φ219 to φ1620mm, processes four or more seal configurations on a single line, and achieves annual outputs of tens of thousands of pipes.

3.Primary Applications

Steel pipe socketing equipment serves pipeline connection needs across multiple sectors. In municipal water and wastewater, bell-and-spigot flexible joints tolerate uneven settlement, making them the preferred connection for large-diameter transmission mains—factory-formed bells and spigots are now standard for DN2000 and above. Oil and gas transmission demands joints combining high strength with sealing reliability, where hydraulically expanded sockets dominate. Building water supply and fire protection favors mechanically spun thin-walled stainless steel fittings for precision and appearance. Industrial piping and mining conveyance benefits from the high cycle rates of automated lines for mass production. Haodeboer has also developed a dedicated 3PE coating line for socketed pipes, solving the industry pain point where expanded pipe ends could not be conveyed through coating processes—enabling socketed steel pipes to meet stringent anti-corrosion requirements for buried service.

4.Comparison of International Standards

Chinese standards (GB/JB) include machinery industry standard JB/T 12088.2-2014 for pipe end forming machines, specifying technical requirements, test methods, and inspection rules. At the pipeline level, CJJ/T 154-2020 permits carbon steel socketed T-joints up to DN2000, requiring factory mechanical rolling of the bell with post-forming rigidity exceeding the original pipe body. Haodeboer's hemispherical socket lap-welded steel pipe has been codified in a group standard, with pressing equipment operating at 200MPa. American standards (AWWA) center on ANSI/AWWA C200 for steel water pipe 6 inches and larger. The standard explicitly restricts bell formation: expanding must be achieved by expanding press or axial die drawing, with rolling prohibited; spigot grooves require dye penetrant or magnetic particle inspection of weld areas. AWWA C206 governs field welding. European standards lack a single equivalent to AWWA C200 for socketing equipment, but EN 10224 and EN 545 impose requirements on pipe end dimensions and sealing performance. European equipment is known for high rigidity and long service life, with SMS-Meer (Germany) and SIME (Italy) as exemplars.

5.Internationally Recognized Manufacturers

Ten manufacturers merit attention based on technical strength, market coverage, and niche influence.

SMS-Meer (Germany) is a global metallurgical pipeline equipment giant, leading in large-diameter thick-walled pipe forming.

SIME (Italy) is a veteran manufacturer with high global share in small-to-medium diameter pipe end-forming machinery.

US Pipe Equipment (USA) is heavily tailored for AWWA standards, the primary choice for domestic US pipe plants.

Haodeboer (China) focuses on heavy-duty CNC pipe end upsetting and double-sealing socket equipment, covering 219mm to 3600mm diameters, with strong presence in Central Asia and the Middle East.

ORTEC (Turkey) is popular in the Middle East with mid-tier pricing and stable equipment precision. E.H. Wachs (USA) specializes in pipe end prep and beveling equipment for field applications.

Manchester Tool & Die (USA) is a major player in the global pipe end-forming machine market. Proto-1 Manufacturing (USA) focuses on pipe end forming and processing equipment with a North American footprint.

Jiangsu Hefeng Machinery (China) offers pipe end forming machine series serving aviation, automotive, and other sectors, with dozens of patents.

Huantai Jinrun Machinery (China) is a specialized manufacturer of steel pipe flexible socketing presses within the Shandong metal forming cluster.

6.Haodeboer's Differentiated Advantage: Integrated Equipment and Pipe Production

Haodeboer (Shandong) Intelligent Equipment Co., Ltd. possesses a core competency that few competitors can match: simultaneous capability in equipment manufacturing and pipe production. Clients receive not merely a machine, but a socketing solution validated on an actual production line. When process adaptation issues arise at a client site, Haodeboer's technical team can directly draw on operational data from its own pipe production lines for diagnosis—rather than relying on theoretical parameters alone. From pipe-end spinning and double-seal structural design, to 3PE coating lines for socketed pipes, to turnkey automated production lines, Haodeboer has accumulated full-chain experience from equipment commissioning to finished pipe dispatch. Its patents span socket forming machines, self-anchoring single-seal connection structures, and 3PE production lines for socketed steel pipes, enabling rapid delivery of validated process solutions for specific operating conditions—whether large-diameter thick-walled pipe, high-strength steel, or specialized seal configurations. For investors entering the socketed steel pipe manufacturing sector, this integrated capability significantly reduces trial-and-error costs: the equipment supplier and the process solution provider are the same entity, ensuring clear accountability and the shortest possible response path.

Conclusion: The technological evolution of steel pipe end socketing equipment is essentially a continuous upgrade from "can connect" to "connects reliably, efficiently, and durably." For pipe manufacturers, choosing equipment means choosing not just a machine, but a validated process system and a technical partner willing to share risks. With its unique positioning integrating equipment manufacturing and pipe production, Haodeboer is delivering full-chain certainty—from pipe end forming to finished pipe dispatch—to clients worldwide.
