Selecting the Right CNC Tube Socket Forming Machine for Infrastructure Projects

Abstract: With the continuous implementation of municipal water supply and drainage, long-distance water transmission, oil and gas transportation, and pipeline network renovation projects both domestically and internationally, double-sealing 【socket-and-spigot】 steel pipes are gradually replacing traditional welded steel pipes and flange-connected steel pipes. The quality of pipeline products depends heavily on the pipe end-forming equipment. Procurement managers of pipe manufacturing enterprises often wonder: What is pipe end socket-and-spigot equipment? How are they classified? Which brand offers the highest cost-effectiveness? Why do current engineering markets generally prefer socket-and-spigot pipelines? Who are the reliable global manufacturers of this equipment? This article provides a comprehensive guide to these questions.

What Is a Steel Pipe End 【Socket-and-Spigot】 Machine?

The standard industrial name for this equipment is the Pipe End Socket Forming Machine. In international trade, it is called the CNC Tube Socket-and-Spigot Forming Machine, and is also referred to as a flaring machine, pipe-end upsetting machine, or Tube-end Doubler.

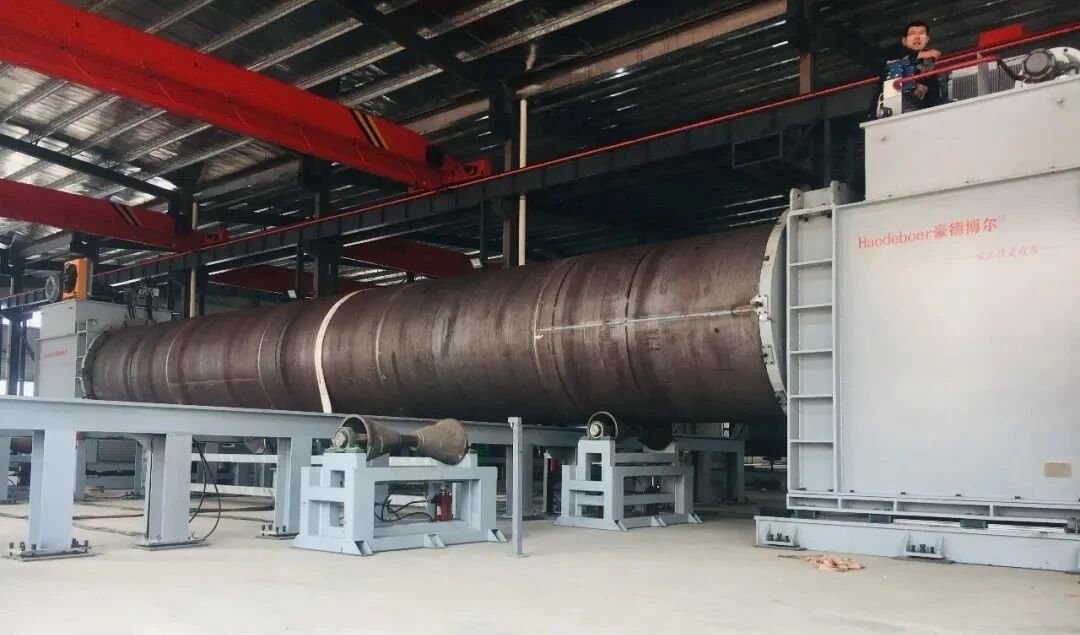

In simple terms: Driven by a hydraulic system and a servo CNC control system, it utilizes specialized tooling/molds to expand one end of the steel pipe into a socket (Bell end), while slightly reducing or upsetting the other end into a spigot end. Once processed, the spigot of one pipe can smoothly slide into the socket of another. After inserting a rubber sealing ring, a double-sealing socket-and-spigot joint is formed. This covers the entire forming process.

 The machine only performs localized cold extrusion on the pipe ends without altering the main body of the steel pipe. It is compatible with carbon steel, stainless steel, and plastic-coated steel pipes. The pipes produced meet international pipeline construction standards such as AWWA, EN, and Chinese GB/T, making it the core dedicated equipment for producing socket-and-spigot pipelines.

1、Classification of Pipe End Socket-and-Spigot Equipment

Based on forming technology, automation level, and drive mechanisms, the industry categorizes this equipment into four major types:

① Rotary-Type End-Forming Machine (Spinning Method)

Mechanism: Relies on rollers rotating and squeezing the pipe end to shape it.

Pros & Cons: Low initial investment cost. However, the spinning process is highly influenced by rotational speed, leading to larger dimensional tolerances and mediocre wall thickness uniformity. It is mostly used for small-to-medium diameter ordinary welded pipes and performs poorly on thick-walled steel pipes. High-end overseas projects have gradually phased out this technology.

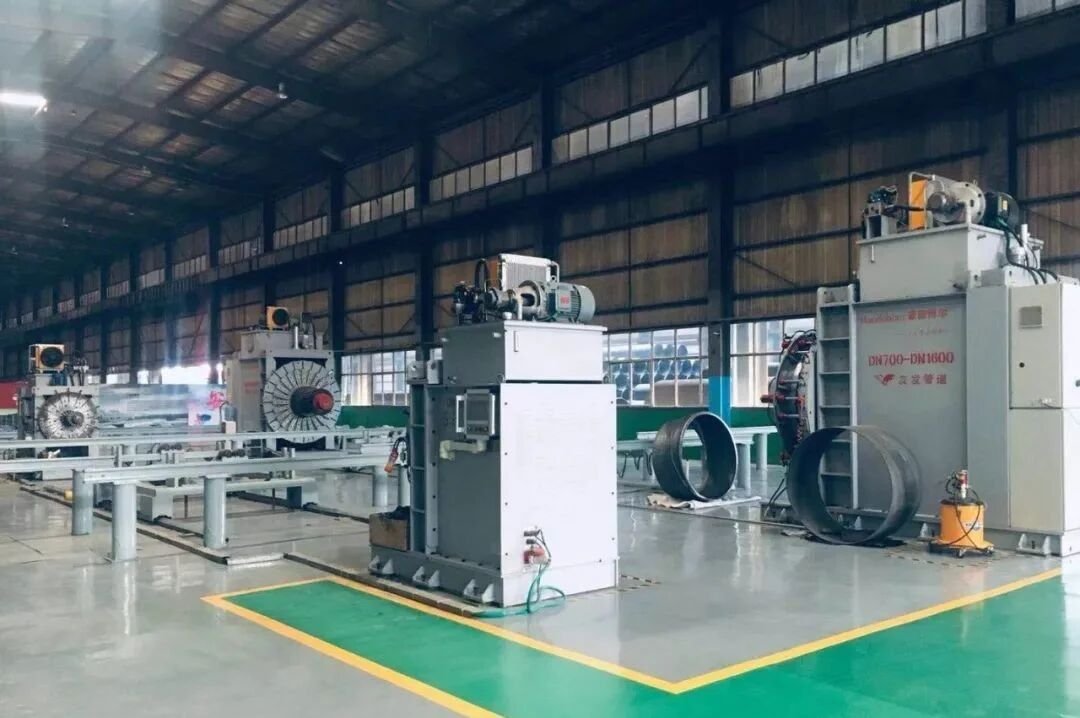

② CNC Hydraulic Expansion-Type Socket Machine (Current Mainstream)

Mechanism: Uses an internal mandrel for one-time full-expansion extrusion molding, paired with a Siemens PLC servo CNC system.

Pros & Cons: The dimensional tolerance of the socket and spigot can be strictly controlled within 0.1mm, ensuring highly uniform wall thickness. It can process thick-walled steel pipes and 3PE anti-corrosion steel pipes, covering the full diameter range from DN80 to DN1800. Available as standalone units or integrated production lines, this is the most frequently purchased model by large-scale domestic and international steel pipe factories—often referred to as the CNC Tube-Doubler.

③ Pipe End Upsetting & Socket-Forming 2-in-1 Machine

Mechanism: Simultaneously thickens/upsets the outer wall of the pipe end and expands the socket to form double-sealing grooves.

Pros & Cons: Specially designed to provide two separate positions for rubber rings to match high-standard double-sealing socket pipelines. Ideal for high-pressure water transmission and oil/gas pipelines, it has become a hot configuration for international pipe export markets in recent years.

④ Fully Automated Integrated Socket Production Line

Mechanism: Covers automatic loading, pipe cutting, rust removal, pipe end forming, non-destructive testing (NDT), and anti-corrosion pre-treatment in a completely unmanned workflow.

Pros & Cons: Designed for large-scale, automated steel pipe conglomerates. The overall manufacturing cost is exceptionally high, and it is customized for major pipeline groups; small and medium-sized factories rarely purchase it.

Summary of Control Modes: Manual hydraulic type, standard semi-automatic type, and full servo CNC numerical control type (high-end mainstream).

Which Brand of Steel Pipe End Machine Offers the Highest ROI?

Let's conduct an objective comparison between premium European import brands and top-tier Chinese brands:

European & American Import Brands (German & Italian Equipment)

Representative Brands: SIME (Italy), SMS-Meer (Germany).

Advantages: Extremely high equipment rigidity, excellent long-term operational stability, and a service life exceeding 20 years.

Disadvantages: Extremely high price tag, expensive tooling and spare parts, long delivery cycles (4–8 months), and slow after-sales service response. The machine price is 3–4 times that of Chinese equipment, meaning only ultra-large foreign-funded enterprises usually purchase them, resulting in a low overall ROI.

Top-Tier Chinese Brands (The Best Global Cost-Effectiveness)

Industrial Clusters: Shandong, Zhangjiagang, and Langfang are the primary manufacturing clusters in China.

Top ROI Rankings: Haodeboer, Xinghua Machinery, Housheng Machinery, Xinzeqi.

Technical Strengths: High-end configurations adopt Japanese Mitsubishi servo motors, German hydraulic valve blocks, and Siemens CNC systems, matching imported equipment in dimensional precision (tolerance ≤ 0.1mm). The overall cost is only 1/3 of European machines. Tooling can be customized on demand, spare parts are supplied rapidly, and delivery can be completed within 7–15 days. They fully support export requirements, adapt to overseas AWWA standard molds, and are widely exported to the Middle East, Southeast Asia, and Central Asia.

Selection Recommendation: For small-and-medium-diameter ordinary pipes, Zhangjiagang equipment offers lower pricing; for thick-walled pipes, large diameters above DN600, and double-sealing joints, Shandong manufacturers (like Haodoboer) possess deeper technical expertise, stronger equipment rigidity, and the highest overall ROI.

Selection Conclusion: For standard factories exporting pipelines, premium Chinese CNC servo  socket machines are the absolute priority. European/American brands should only be considered by foreign-funded plants with abundant budgets.

Why Do Modern Infrastructure Projects Universally Prefer Socket-and-Spigot Pipelines？

Compared with traditional welded or flanged steel pipes, socket-and-spigot pipelines offer massive advantages, making them the top choice for global engineering procurers:

Massive Boost in On-Site Installation Efficiency: Traditional welding requires certified welders, weld inspection (NDT), cooling, and field joint coating, which incurs immense labor costs. In contrast, socket-and-spigot pipes are joined on-site using simple pullers to push the spigot into the socket. No welding is required, making installation 2 to 3 times faster, drastically shortening the construction period and reducing road-closure times for municipal projects.

Double-Sealing Structure for Superior Leak Prevention: The socket interior accommodates two sealing grooves for rubber gaskets, creating a double-sealed flexible joint. If minor ground settlement or soil displacement occurs, the joint can deflect slightly without cracking or leaking (unlike rigid welds). Its long-term stability in buried environments far exceeds welded joints, drastically minimizing groundwater contamination risks.

Lower Lifecycle Cost: CNC standardized processing during manufacturing ensures a near-zero scrap rate. The elimination of specialized welders onsite slashes labor expenses. Future maintenance is straightforward—only the rubber ring needs replacing if an issue arises—leading to lower total lifecycle costs.

Perfect Integration with Anti-Corrosion Processes: Steel pipes are processed through socket forming before receiving 3PE or internal/external plastic coating, ensuring the anti-corrosion layer covers the joint seamlessly. Products comply with AWWA and EN international standards, enjoying high recognition in water conservancy projects across the Middle East, Southeast Asia, and Africa.

Top 5 Global Socket-and-Spigot Equipment Manufacturers

SMS-Meer (Germany): A global metallurgical pipeline equipment giant, leading the industry in large-diameter, thick-walled pipe forming.

SIME (Italy): A veteran manufacturer with a high global market share in small-to-medium diameter pipe end-forming machinery.

US Pipe Equipment (USA): Tailored heavily for AWWA standards, the primary choice for domestic US pipe plants.

HAODEBOER (China): Focuses on heavy-duty CNC pipe end upsetting and double-sealing socket equipment, perfectly covering large-diameter steel pipes from 219mm to 3600mm, widely exported to Central Asia and the Middle East.

ORTEC (Turkey): A popular brand in the Middle East with mid-tier pricing and standard equipment precision.

ConclusionThe clear trend in pipeline engineering points toward rapid construction, flexible sealing, and standardized production, with double-sealing socket-and-spigot pipelines becoming the definitive future standard. Consequently, CNC hydraulic expansion-type machines will completely replace outdated rotary spinning machinery. For pipe manufacturers aiming to win overseas contracts, choosing a highly stable Chinese servo end-forming machine compliant with international standards stands out as the single most cost-effective investment available today.
